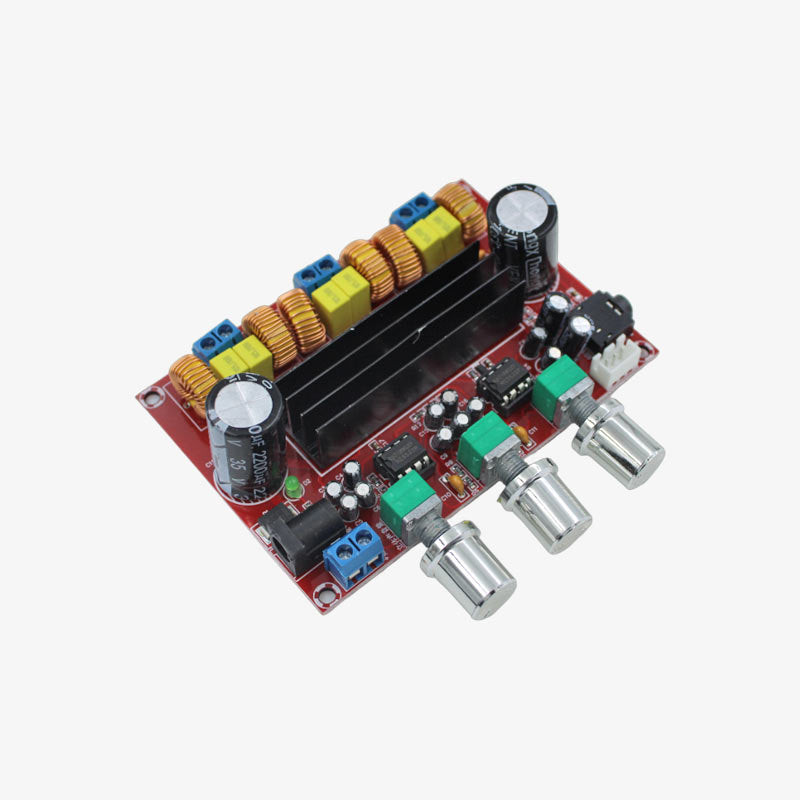

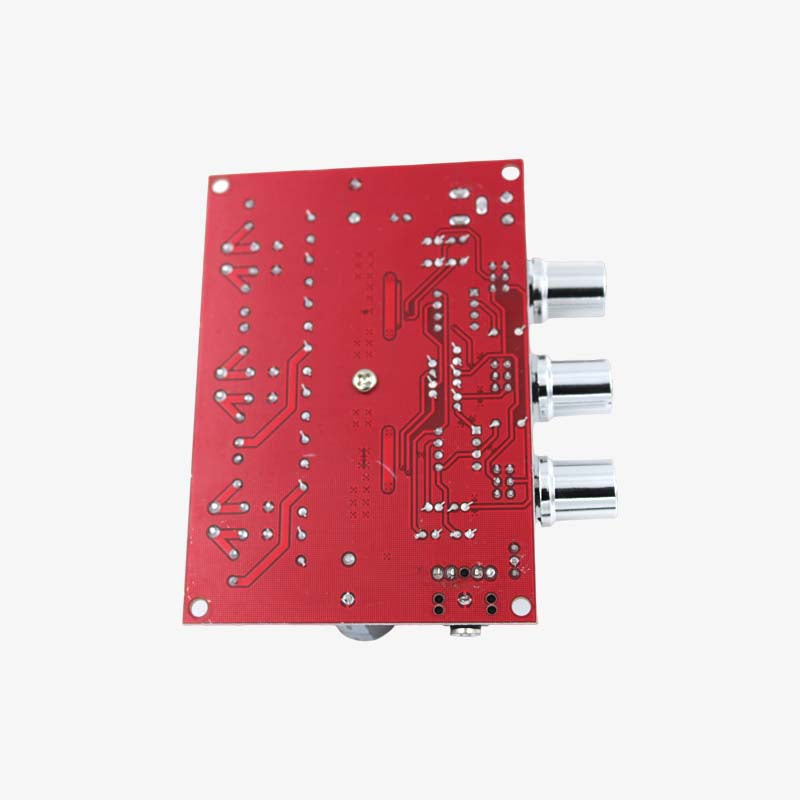

TPA3116D2 Amplifier Board Features:

• High-Quality Amplification: Embrace the excellence of dual TPA3116D2 digital amplifier chips for remarkable sound quality and power efficiency.
• 2.1 Channel Configuration: Experience audio immersion with 50W x 2 for the left/right channels and 100W for the dedicated subwoofer channel.
• Efficiency and Heat Management: Enjoy high efficiency and low heat generation, making prolonged use a breeze.
• Wide Voltage Range: Operate with ease using DC power supplies ranging from 12V to 24V, granting you flexibility in power sources.
• User-Friendly Volume Control: Tailor your audio experience by adjusting the volume with ease, putting control at your fingertips.
• Applicable Speaker Impedance: Ideal for speakers with impedance ranging from 4 to 8 ohms.

TPA3116D2 Amplifier Board Specifications:

• Amplifier Chips: Dual TPA3116D2
• Channel Configuration: 2.1 (Left/Right Channels + Subwoofer Channel)
• Power Output: 50W x 2 for Left/Right Channels, 100W for Subwoofer Channel
• Power Supply Voltage: DC 12V - 24V
• Audio Output: Terminals
• Frequency Response Range: 14-100KHz
• SNR: 100dB
• Switching Frequency: 1.2MHz
• Input Impedance: Applicable to speakers with 4-8 ohm impedance
• Dimensions: 100x70x29mm

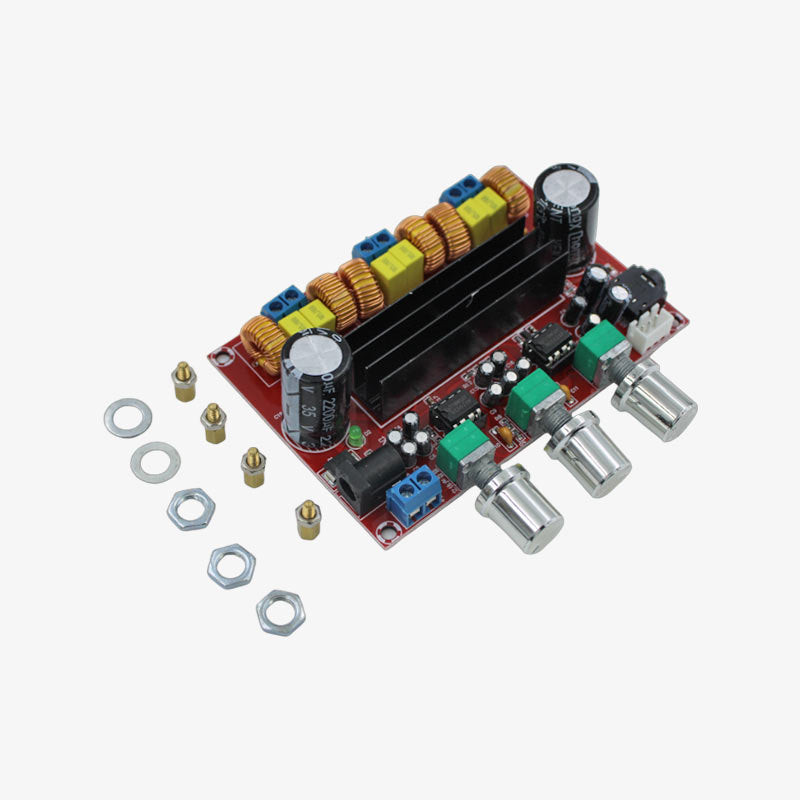

Package Includes:

1 x TPA3116D2 Amplifier Board
